How to install hidden hinges.

Back | Home

Installing hidden hinges can be quite easy.  It can actually be easier than using standard revealed hinges.
Here are the steps to easy installation:

  1. Assuming your 35mm hinge holes were all drilled the same distance from the top and bottom of each door, mount the hinges to one of the doors.

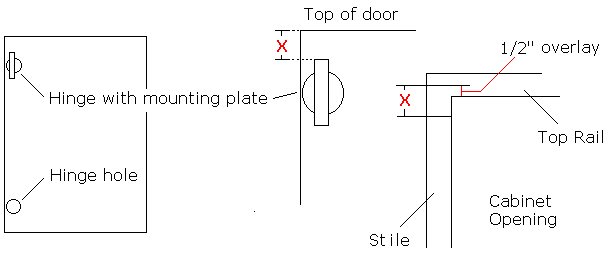

  2. Install a hinge plate into the top hinge.  Measure from the top of the hinge plate to the top of the door (X in the illustration below).
  3. Place a mark on the stile of each cabinet opening on the side where the hinges will mount the same distance as X minus the distance the door will overlay the rail at the top of the opening.  The illustration uses a 1/2" overlay (typical overlay for most doors).  Adjust for your overlay if different. (Formula for stile mark: X minus overlay = mark from top of cabinet opening)
